JAEGER NXT straight pull bolt action rifle
The JAEGER NXT straight-pull bolt action delivers clearly more in every respect: more speed when cocking and cycling, more robustness in daily use, more safety, and a more confident feel in the field. Its patented technology is as straightforward and secure as the operation of the new kickdown manual cocking system and the bolt lock at the action. A reliably convincing tool for stalking and stand hunting, with a particular suitability for driven hunts. Now available as a Composite version for left-handed shooters.
JAEGER NXT features
Patented innovation: The straight pull repeater with torsion lock
Straight-pull repeaters are the premium solution for driven hunts. They convince through ergonomics and speed. With a new locking and manual clamping system, Haenel has opened up a new category in this premium world: the torsion lock automatically twists the cylinder in the sleeve. It is based on the principle of the bevel gear. Simple, fast, robust – and yet unrivaled security, as the core is a tried and tested cylinder lock with locking lugs.
1: The kickdown bolt handle moves the cylinder linearly At the same time, it rotates and locks the bolt in the barrel via a bevel gear.
2: A real manual cocking device, not a finger cocking device: In the front third of the swivel range, the bolt handle puts the system under tension and makes it ready to fire.
Safe handling

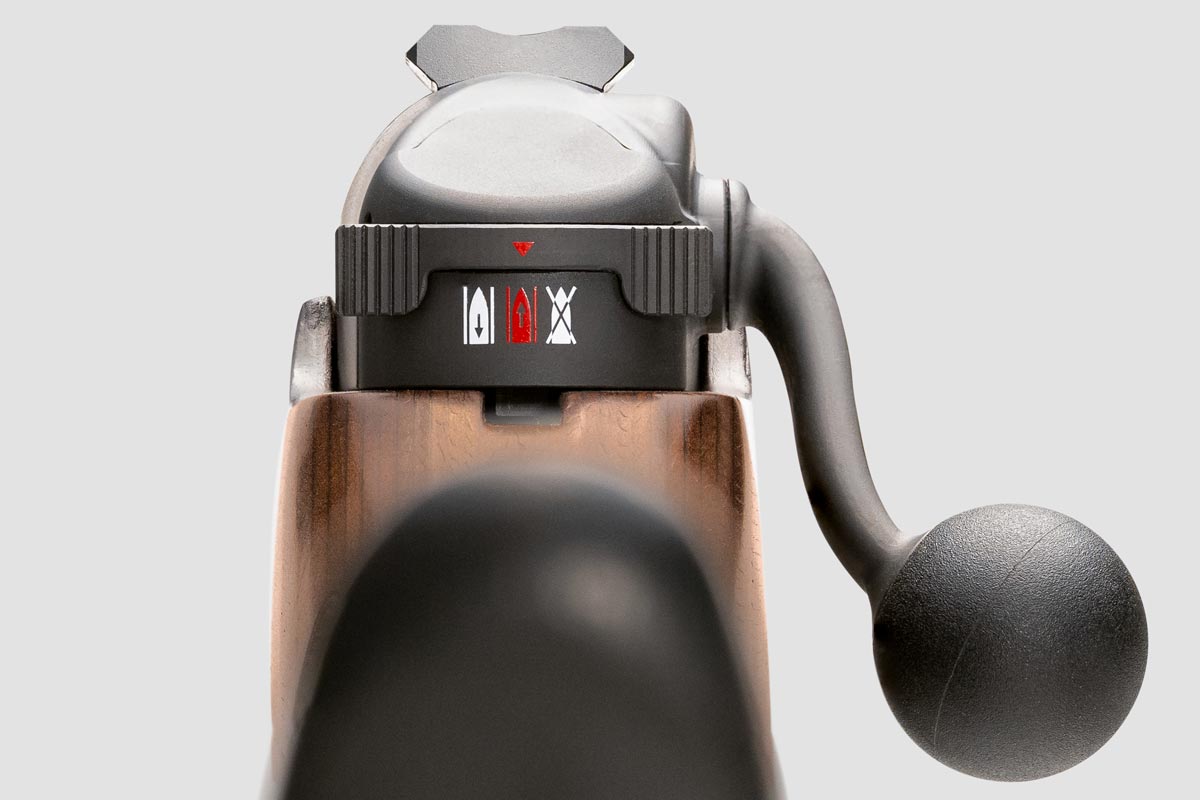

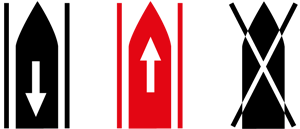

The bolt lock lever has three positions: the safe unloading position, the middle position for cocking the rifle, and the safety position that locks the bolt handle.
Straight-pull, built for the left side
The Jaeger NXT Composite Left transfers the fast straight-pull bolt action with its secure manual cocking system to the left-hand side. This gives left-handed shooters quick, efficient handling on driven hunts without compromising control. The composite stock offers variable dimensions and an ergonomically ambidextrous layout.
Stock variants to suit different preferences
The Jaeger NXT covers all stock preferences: finely grained wood, also available as the Adjustable version with a height-adjustable cheekpiece. A shortened wooden DS stock for smaller shooters. Or the Composite stock with optimized ergonomics, flexible stock dimensions, and an ambidextrous layout — including the left-hand configuration on the Jaeger NXT Left.
Composite: The synthetic stock made to fit …
The Jaeger NXT Composite offers a dynamic synthetic stock system with a 3-stage adapting concept. The better the stock fits the shooter, the faster the rifle is on target and the safer the shot. This stock is perfectly matched to the new type of straight-pull bolt-action rifle with its safe manual cocking system. The lightweight rifle has a driven hunt preference where ergonomic qualities are key. But it is also an ideal hunting companion when stalking.
Adjust stock length
The length of the stock is optimized before hunting: Depending on arm length or clothing thickness, optional stock caps are used to shorten the stock by 7 millimeters or lengthen it by 5 millimeters.
The buttstock with the “zoom”
The button on the right side releases the detent, the cheekpiece extends spring-assisted. The advantage is an optimally positioned cheekpiece: the target is aimed faster, the hunter can take his chances.
Forearm for a good grip
No matter where the shooter intuitively grips, the forearm provides optimal support for all hand sizes to draw the rifle to the crook of the shoulder. Soft touch inserts for the palms provide a secure grip.
The JAEGER NXT in video
Let us show you and explain the JAEGER NXT from Haenel – in the video we explain the fascination and technology of the innovative straight puller.
JAEGER NXT versions
Explanation of symbols:
Hunting
Sport
Defense / Authorities
JAEGER NXT COMPOSITE
Straight pull hunting repeater with dynamic composite stock – close to custom stock fit through triple adjustable ergonomics. Fast torsion lock with kickdown manual cocking device that combines bolt action and true hand cocking in one lever.
| Calibre (twist) | .30-06 Spring. (11,0") / .308 Win. (12,0") / 8x57 IS (9,4") / 6,5 Creedmoor (8") / .300 Win. Mag. (11,0") |
| Overall length | 1045 mm (Standard) / 1135 mm (Magnum) |
| Barrel length | 520 mm (Standard) / 610 mm (Magnum) |
| Barrel diameter | ∅ 18 mm |
| Weight | approx. 3,1 kg |
| Sight | i-Sight system: detachable sights, with muzzle thread (M15x1) and muzzle-cap |
| Magazine capacity | 5-round plug-in magazine with patented magazine catch |
| Stock | Composite shaft with interchangeable shaft caps, continuously extendable shaft back and integrated soft-touch inserts. |
| Additional features | Picatinny-rail / Green Barrel: optimised for lead-free ammunition (.308 Win.) |
JAEGER NXT COMPOSITE LEFT
For left-handed shooters: The straight-pull repeater is now also available in a left-handed version. Reloading and cocking are conveniently performed with the dominant hand. The composite plastic stock offers functional, ergonomic handling – and all at the same price as the right-handed version.
| Calibre (twist) | .30-06 Spring. (11,0") / .308 Win. (12,0") / 8x57 IS (9,4") / 6,5 Creedmoor (8") / .300 Win. Mag. (11,0") |
| Overall length | 1045 mm (Standard) / 1135 mm (Magnum) |
| Barrel length | 520 mm (Standard) / 610 mm (Magnum) |
| Barrel diameter | ∅ 18 mm |
| Weight | approx. 3,1 kg |
| Sight | i-Sight system: detachable sights, with muzzle thread (M15x1) and muzzle-cap |
| Magazine capacity | 5-round plug-in magazine with patented magazine catch |
| Stock | Composite shaft with interchangeable shaft caps, continuously extendable shaft back and integrated soft-touch inserts. |
| Additional features | Picatinny-rail / Green Barrel: optimised for lead-free ammunition (.308 Win.) |
JAEGER NXT COMPOSITE SHORT
The straight-pull hunting repeater impresses with its short, maneuverable barrel and ergonomic composite stock, which offers a customized fit thanks to three adjustment options.
| Calibre (Twist) | .308 Win. (12,0") / 8x57 IS (9,4") |
| Overall length | 1.005 mm |
| Barrel length | 470 mm |
| Barrel diameter | ∅ 19 mm |
| Weight | approx. 3,1 kg |
| Sight | Muzzle thread (M15x1) with thread cap. Pre-equipped for optional use of the i-Sight system (accessory). |
| Magazine capacity | 5-round plug-in magazine with patented magazine catch |
| Stock | Composite shaft with interchangeable shaft caps, continuously extendable shaft back and integrated soft-touch inserts. |
| Additional features | Picatinny-rail / Green Barrel: optimised for lead-free ammunition (.308 Win.) |
JAEGER NXT STANDARD
The standard version of the NXT straight-pull rifle features a laminated wood stock (FSC wood compound) and is equipped with Quick-Adapt sling swivels that use a push-button mechanism to allow quick and easy attachment and removal of the sling.
| Calibre (Twist) | .30-06 Spring. (11,0") / .308 Win. (12,0") / 8x57 IS (9,4") / 6,5 Creedmoor (8") / .300 Win. Mag. (11,0") |
| Overall length | 1045 mm (Standard) / 1135 mm (Magnum) |
| Barrel length | 520 mm (Standard) / 610 mm (Magnum) |
| Barrel diameter | ∅ 18 mm |
| Weight | approx. 3,2 kg |
| Sight | i-Sight system: detachable sights, with muzzle thread (M15x1) and muzzle-cap |
| Magazine capacity | 5-round plug-in magazine with patented magazine catch |
| Stock | FSC Wood Compound Stock, including push-button sling swivels |
| Additional features | Picatinny-rail / Green Barrel: optimised for lead-free ammunition (.308 Win.) |
JAEGER NXT DS
The JAEGER NXT DS is the straight-pull bolt-action for special ergonomic requirements, which especially women and smaller men appreciate. Stock shape and pistol grip are adapted - the rest corresponds to the JAEGER NXT.
| Calibre (Twist) | .30-06 Spring. (11,0") / .308 Win. (12,0") / 8x57 IS (9,4") / 6,5 Creedmoor (8") / .300 Win. Mag. (11,0") |
| Overall length | 1035 mm (Standard) / 1125 mm (Magnum) |
| Barrel length | 520 mm (Standard) / 610 mm (Magnum) |
| Barrel diameter | ∅ 18 mm |
| Weight | approx. 3,2 kg |
| Sight | i-Sight system: detachable sights, with muzzle thread (M15x1) and muzzle-cap |
| Magazine capacity | 5-round plug-in magazine with patented magazine catch |
| Stock | FSC-wood composite stock, including push-button sling swivels |
| Additional features | Picatinny-rail / Green Barrel: optimised for lead-free ammunition (.308 Win.) |
JAEGER NXT ADJUSTABLE
Straight-pull bolt-action with torsion bolt and kickdown bolt handle that combines repeating and hand cocking in one lever. The linear torsion bolt is a further development of the cylinder lock with locking lugs - based on a bevel gear. The rifle was developed with sustainability in mind, dispensing with classic plastics and old walnut wood. Green Barrel in .308 Win. - optimised for lead-free ammunition.
| Calibre (Twist) | .30-06 Spring. (11,0") / .308 Win. (12,0") / 8x57 IS (9,4") / 6,5 Creedmoor (8") / .300 Win. Mag. (11,0") |
| Overall length | 1045 mm (Standard) / 1135 mm (Magnum) |
| Barrel length | 520 mm (Standard) / 610 mm (Magnum) |
| Barrel diameter | ∅ 18 mm |
| Weight | approx. 3,2 kg |
| Sight | i-Sight system: detachable sights, with muzzle thread (M15x1) and muzzle-cap |
| Magazine capacity | 5-round plug-in magazine with patented magazine catch |
| Stock | FSC wood-compound stock with a guided, push-button-release cheekpiece, including push-button sling swivels |
| Additional features | Picatinny-rail / Green Barrel: optimised for lead-free ammunition (.308 Win.) |
JAEGER NXT Tracker
Short straight-pull bolt action rifle with special equipment for walk-through shooting and tracking: push-button sling swivel for the barrel thread and additional sling swivel socket on the left side of the buttstock. Variable Tracker iSight system for flexible open sights even with standard suppressor. Can be removed with a single screw.
| Calibre | .308 Win. / 8x57 IS |
| Overall length | 990 mm |
| Barrel length | 470 mm |
| Barrel diameter | ∅ 19 mm |
| Weight | approx. 3,1 kg |
| Sight | i-Sight system: detachable sights, with muzzle thread (M15x1) and muzzle-cap |
| Magazine capacity | 5-round plug-in magazine with patented magazine catch |
| Stock | FSC Wood Compound Stock |
| Additional features | Picatinny-rail / Green Barrel: optimised for lead-free ammunition (.308 Win.) |
