Cooperation with the Swiss specialist B&T: JGR Suppressor from Haenel

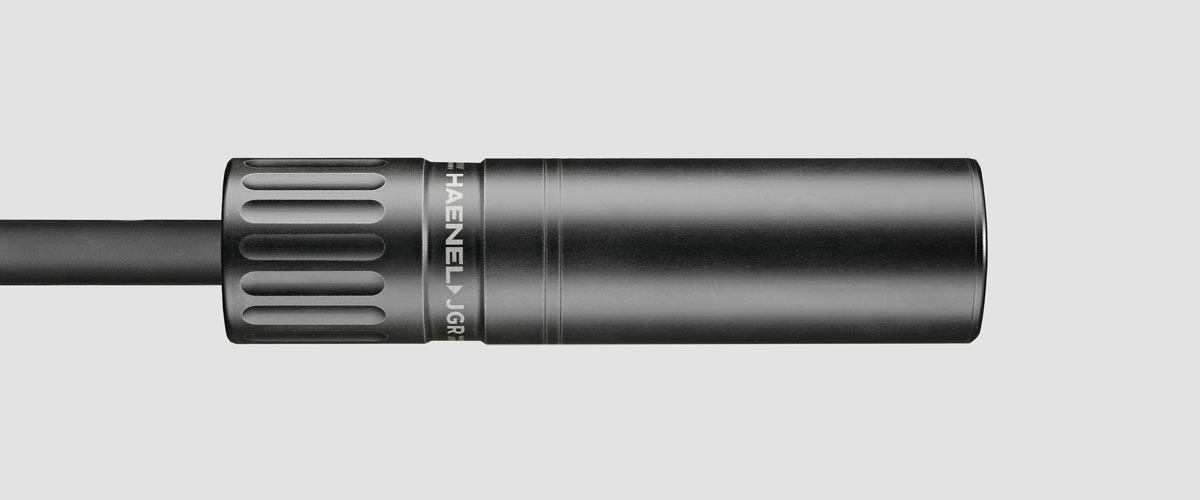

Silencer: Haenel JGR Suppressor

Shooting without stress: The new JGR Suppressor from Haenel was developed in cooperation with our system partner and silencer specialist B&T from Switzerland. It fits on every barrel with muzzle thread M15x1. Proven to reduce peak muzzle blast sound pressure by at least 30 dB(C), the suppressor will withstand 30 consecutive shots in the range (tested with .308 Win.).

Haenel JGR 6,2
Haenel JGR .30
Haenel JGR 9,5

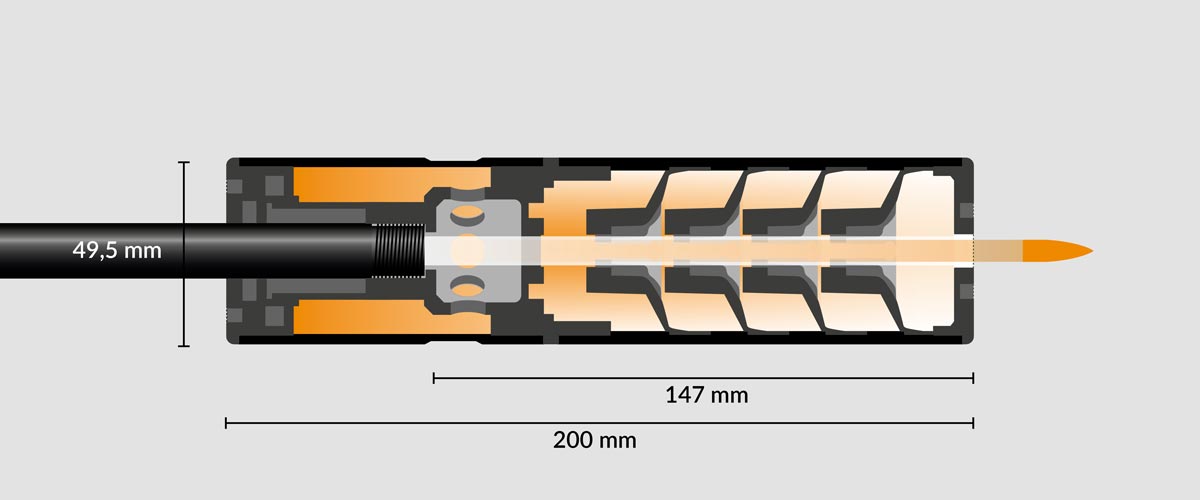

Star blinds instead of steel wool

Haenel JGR overbarrel silencers are made of high-quality aluminium and – like their relatives from the government sector – are equipped with star trims. These aluminium milled parts in the silencer tube relax the muzzle blast and are very stable. Even series of shots in the shooting cinema are possible.

Silencers in three calibre variants

The JGR silencer is available in three calibre groups for small hunting calibres (JGR 6.5), medium calibres (JGR .30) and large calibres (JGR 9.3). The silencers cannot be dismantled for safety reasons.

JGR Suppressor versions

Common areas of use:

Hunting

Sports

Defence / Authorities

HAENEL JGR 6,2 – Suppressor

H S

Haenel overbarrel hunting silencers - manufactured and developed by B&T in Switzerland for the small hunting calibres - calibre group 6.2

Kooperation mit dem Schweizer Spezialisten B&T: JGR Suppressor von Haenel
Technical Details
Caliber .222 Rem. / .223 Rem. / .243 Win.
Length 200 mm (overbarrel suppressor – increases the barrel length by 147 mm)
Diameter 49,5 mm
Weight approx. 430 g
Thread M15x1

HAENEL JGR .30 – Suppressor

H S

Haenel overbarrel hunting silencer - manufactured and developed by B&T in Switzerland for the calibre group .30

Kooperation mit dem Schweizer Spezialisten B&T: JGR Suppressor von Haenel
Technical Details
Caliber 6,5×55 SE / 7×64 / 7mm Rem. Mag. / .270 Win. / .30-06 / .308 Win. / 6,5 Creedmoor / .300 Win. Mag.
Length 200 mm (overbarrel suppressor – increases the barrel length by 147 mm)
Diameter 49,5 mm
Weight approx. 430 g
Thread M15x1

HAENEL JGR 9,3 - Suppressor

H S

Haenel overbarrel hunting silencer - manufactured and developed by B&T in Switzerland for the 9.3 calibre group.

Kooperation mit dem Schweizer Spezialisten B&T: JGR Suppressor von Haenel
Technical Details
Caliber 8x57 IS / .338 Win. Mag. / 9,3x62
Length 240 mm (overbarrel suppressor – increases the barrel length by 187 mm)
Diameter 49,5 mm
Weight approx. 550 g
Thread M15x1
